Project Background
- Project Date: 2025
- Customer Location: Iran
- Material: Synthetic Mica
- Equipment Model: Epic Powder MQW20 Jet Mill

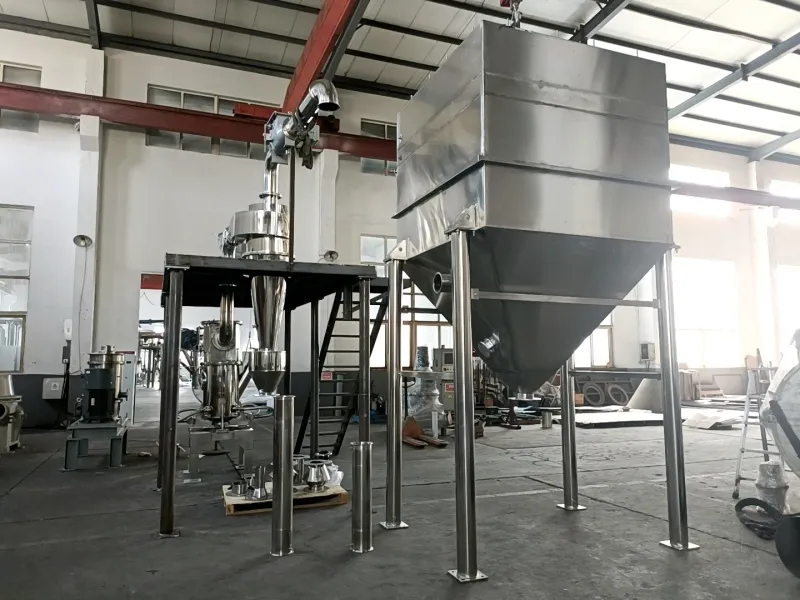

- Production Line Configuration: MQW20 Main Unit + High-Precision Air Classifier + Closed-Loop Air System + Pulse Bag Dust Collector
Synthetic mica is widely used in high-end cosmetics (pearlescent pigments), electronic insulation materials, and specialty coatings due to its excellent electrical insulation, high temperature resistance, and chemical stability. To meet downstream customers’ demands for ultra-fine, high-purity, and narrow particle size distribution mica powder, the Iranian client urgently required a stable, efficient, and clean ultra-fine jet mill grinding production line.
Technical Requirements
| Parameter | Requirement |
|---|---|
| Feed Size | ≤400 mesh (<38μm) |
| Discharge Size | D50 = 3.34μm (actual measured) |
| Capacity | ≥180kg/h (continuous stable operation) |
| Purity Requirement | No metal contamination, suitable for cosmetic-grade applications |
| Energy Consumption | Over 30% lower than traditional mechanical mills |
| Environmental Standard | Dust emission <10mg/Nm³ |
Equipment Solution: Epic Powder MQW20
Key Equipment Features
- Media-Free Grinding: Pure particle-on-particle collision, eliminating iron contamination
- Precise Turbine Classification: D50 adjustable from 0.5–10μm
- Closed-Loop Nitrogen Protection (Optional): Suitable for oxidation-sensitive materials
- Variable Frequency Control System: One-touch adjustment of capacity and fineness
- Full Stainless Steel Lining + Ceramic Protection: Meets cosmetic GMP standards
Actual Performance Data (Iran Site)
| Item | Measured Value |
|---|---|
| Feed Size | 400 mesh (D97 < 38μm) |
| Discharge Size | D50 = 3.34μm, D97 < 8.2μm |
| Capacity | 180–195kg/h (stable operation) |
| Unit Energy Consumption | Approx. 185kWh/t |
| Yield Rate | >98.5% |
| Dust Emission | <5mg/Nm³ |
Conclusion
The success of this project demonstrates Epic Powder’s strength in providing customized ultrafine grinding solutions. The MQW20 jet mill production line system not only meets the high-purity, narrow-distribution requirements of synthetic mica, but also offers energy-efficient, stable, and scalable production capability — making it a preferred choice for advanced material manufacturers .
